Finding a short circuit on a complex PCB can be like finding a needle in a haystack—unless you have a thermal camera. By visually identifying heat, you can locate the exact component you just fried in seconds. In this showdown, we compare three popular smartphone-attached thermal cameras so you can clearly see your expensive mistakes glowing red hot.

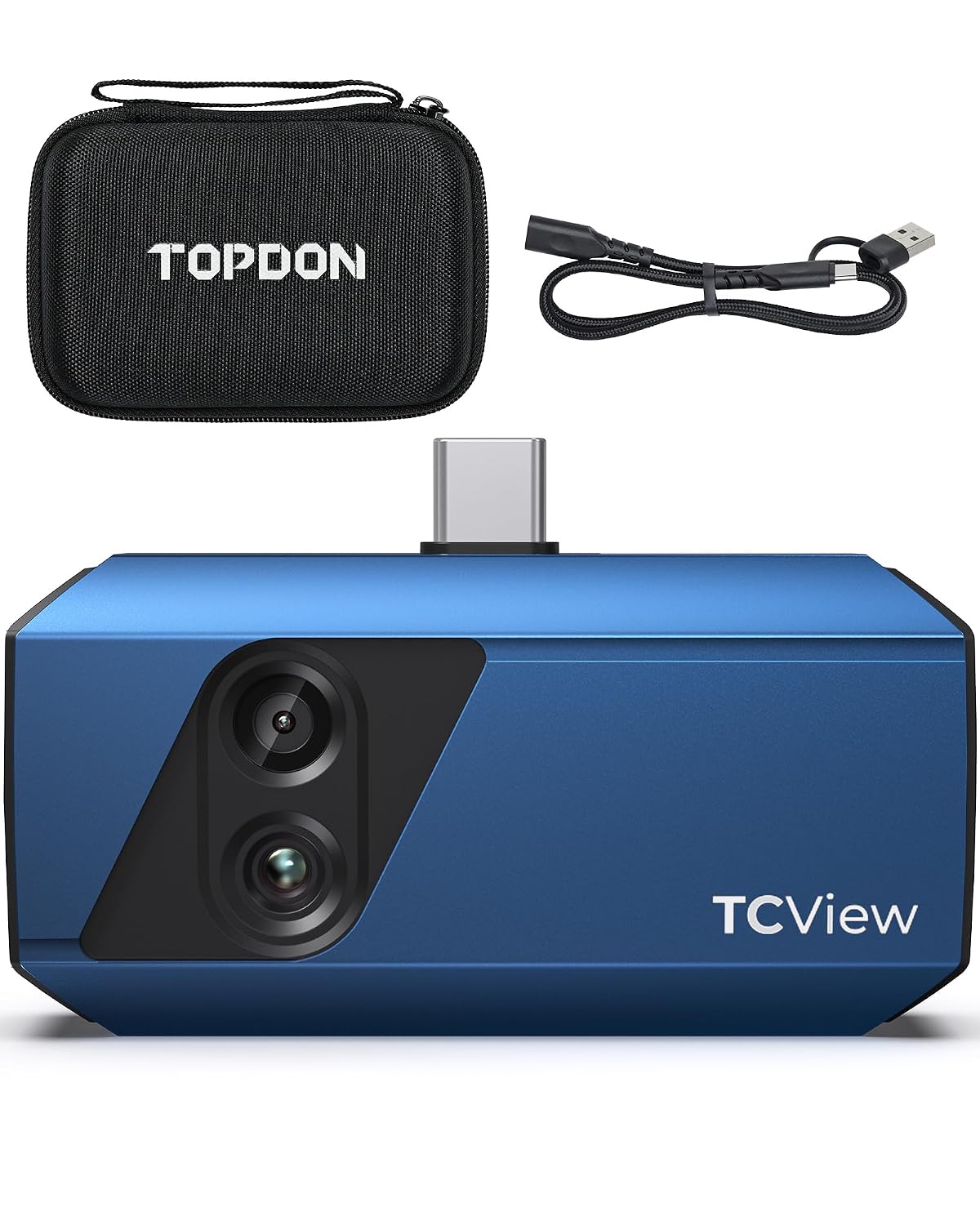

1. TOPDON TC001 Thermal Camera
The TOPDON TC001 has rapidly become a favorite in the electronics repair community, offering excellent value and performance for its price bracket.
Pros:
- High Resolution: 256x192 IR resolution provides excellent detail, crucial for spotting tiny SMD components heating up.
- Refresh Rate: 25Hz refresh rate makes scanning smooth and responsive.
- Value: Punches way above its weight class in terms of specs-to-price ratio.
- Mac/PC Support: Can be plugged directly into a computer for a larger display view via their software.
Cons:
- App Clunkiness: The Android app is functional but can sometimes feel a bit unpolished compared to larger brands.
- No Built-in Visible Light Camera: It relies entirely on the thermal sensor (unlike FLIR’s MSX).
Why it matters: For the advanced hobbyist or pro repair tech, the 25Hz refresh rate and 256x192 resolution are game-changers. You can see the heat bloom on a tiny 0402 capacitor clearly.
Get the TOPDON TC001: Check on Amazon

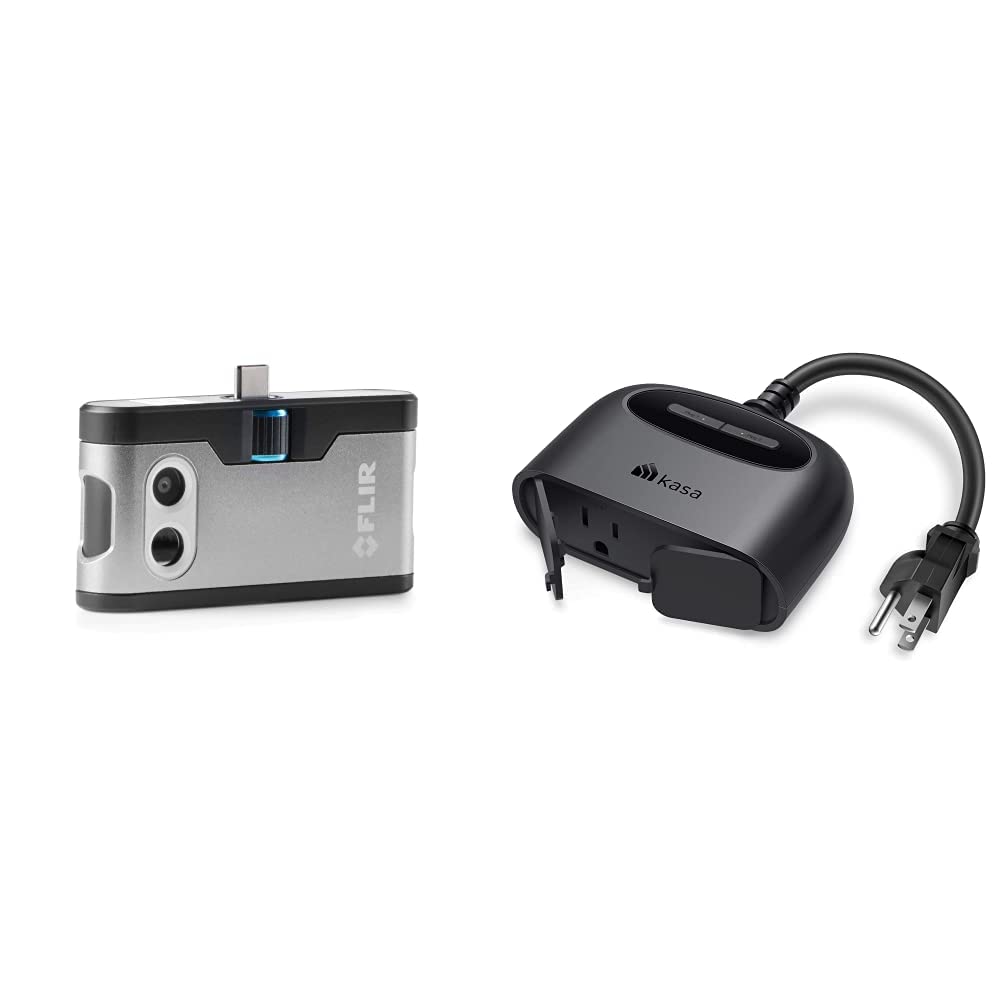

2. FLIR ONE Gen 3
FLIR is the most recognized name in thermal imaging. The Gen 3 is their entry-level consumer model aimed at general use, but it frequently finds its way onto electronics benches.
Pros:
- MSX Technology: Blends visible light outlines over the thermal image, making it incredibly easy to identify exactly which component is getting hot.
- Software: The FLIR app is highly polished, stable, and easy to use.
- Brand Reliability: FLIR has a long track record of durable, well-calibrated tools.
Cons:
- Low Thermal Resolution: At 80x60, the actual thermal sensor is quite low resolution.
- Low Refresh Rate: 8.7Hz means the image stutters when you move the camera.
- Built-in Battery: It requires its own charge; if it’s dead, you can’t use it, even if your phone is fully charged.
Why it matters: For beginners, MSX technology is incredible because it overlays physical outlines onto the heat map. However, the low 80x60 resolution means you might struggle with dense, micro-soldered boards.
Get the FLIR ONE Gen 3: Check on Amazon

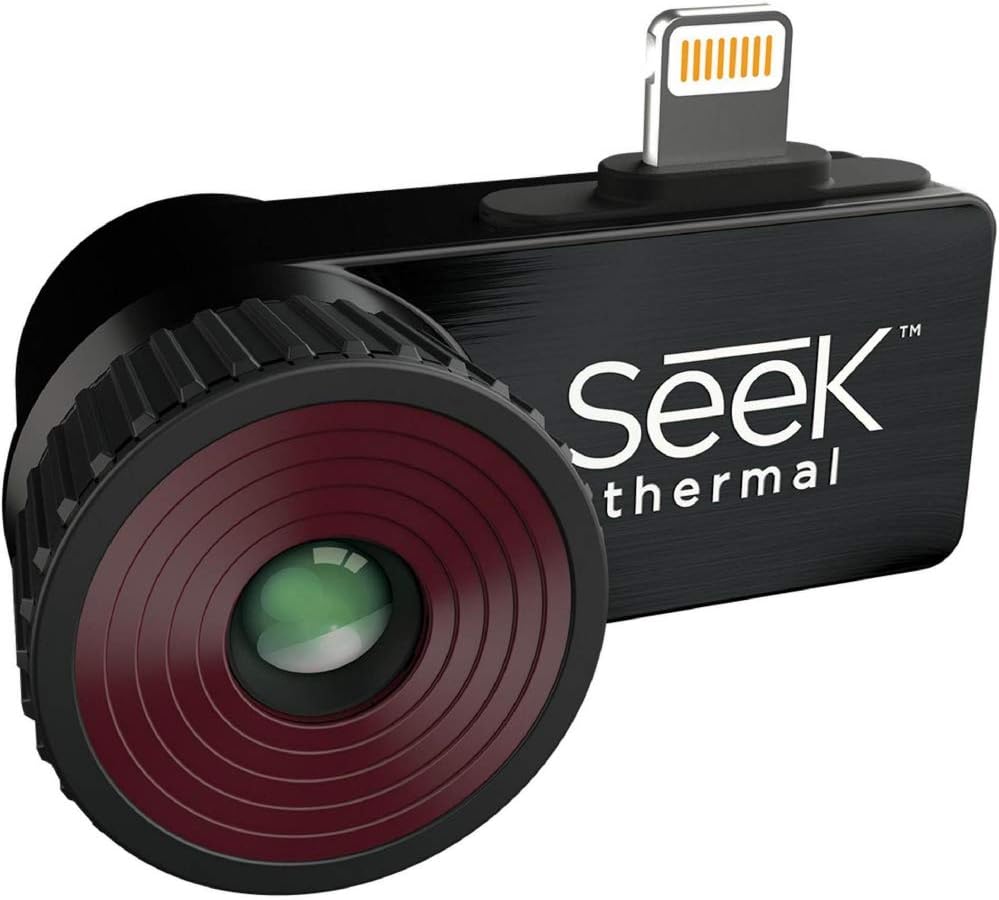

3. Seek Thermal CompactPRO
Seek Thermal aims for the higher end of the smartphone attachment market. The CompactPRO is their flagship mobile device.
Pros:
- Massive Resolution: 320x240 thermal sensor provides the sharpest image in this lineup.
- Wide Temperature Range: Capable of measuring from -40°F to 626°F.
- Focusable Lens: A manual focus ring is absolutely critical for PCB work where you need to look at components just a few inches away.
Cons:
- Price: It is significantly more expensive than the entry-level FLIR or the TOPDON.
- Refresh Rate: Typically limited to <9Hz in many regions due to export regulations, which can feel choppy.
Why it matters: The manual focus is the hero feature here. Fixed-focus lenses (like the FLIR ONE) get blurry when you hold them close to a PCB. The Seek CompactPRO lets you dial in perfect focus on tiny chips.
Get the Seek Thermal CompactPRO: Check on Amazon
The Verdict: Beginner vs. Pro
For the Beginner: The FLIR ONE Gen 3 is a great starting point if you want an easy-to-use tool for general diagnostics (checking home insulation, automotive, and basic PCB work). The MSX feature makes up for the lower resolution by helping you identify what you’re looking at.
For the Enthusiast & Pro: The TOPDON TC001 is currently the sweet spot for electronics repair. The 25Hz refresh rate and 256x192 resolution completely outclass the entry-level FLIR for PCB work, and the price makes it highly accessible. If you have the budget and need manual focus for absolute micro-soldering precision, the Seek CompactPRO is a powerhouse, but the TOPDON remains the best overall value for the bench.
