When your Arduino project stops working and Serial.println() isn’t cutting it, a logic analyzer is your best friend. Oscilloscopes show you the analog reality of a signal (voltage over time), but logic analyzers show you the digital truth: 0s and 1s, translated directly into human-readable protocols like I2C, SPI, or UART.
If you are just getting started, you don’t need a $500 Saleae logic analyzer. But do you buy the cheapest $15 clone on Amazon, or invest slightly more in a mid-tier model like the DSLogic Plus?
Here is our showdown of the best logic analyzers for beginners and hobbyists.

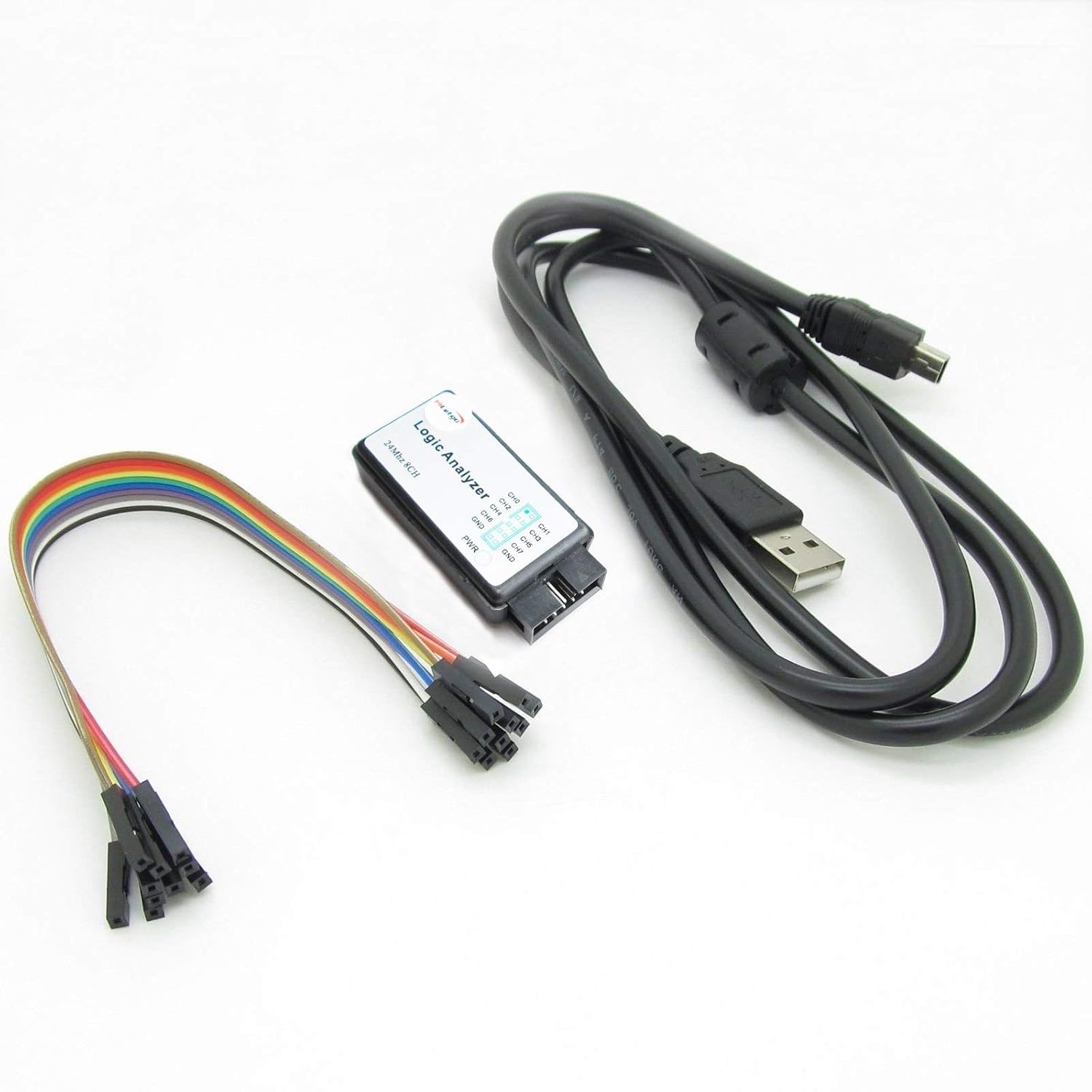

1. The Budget King: HiLetgo 24MHz 8-Channel USB Logic Analyzer
The Vibe: The ultimate cheap tool that everyone should have in their drawer. Price: ~$15
If you search for logic analyzers on Amazon, you will see a dozen variations of this exact same little black box. They are all based on the Cypress FX2LP chip and are essentially clones of the original Saleae Logic (which was discontinued long ago).
Why it matters for Beginners:
- PulseView/Sigrok Compatibility: These work perfectly with the open-source Sigrok PulseView software, which can decode almost any protocol you’ll encounter on an Arduino (I2C for screens, SPI for SD cards, UART for GPS).
- 24MHz Sampling Rate: It samples at 24 million times per second. By the Nyquist theorem, this means you can comfortably analyze signals up to about 4-6MHz. Standard Arduino I2C runs at 100kHz or 400kHz, meaning this cheap tool handles it flawlessly.
- Disposable: At this price, if you accidentally fry it by sending 12V into an input pin, it’s not the end of the world.
Where it falls short (Pro view): It only has a tiny hardware buffer. It relies entirely on your PC’s USB connection to stream data. If your USB bus hiccups, you lose data. Also, the included hook clips are notoriously flimsy.
Get it here: HiLetgo 24MHz 8 Channel USB Logic Analyzer

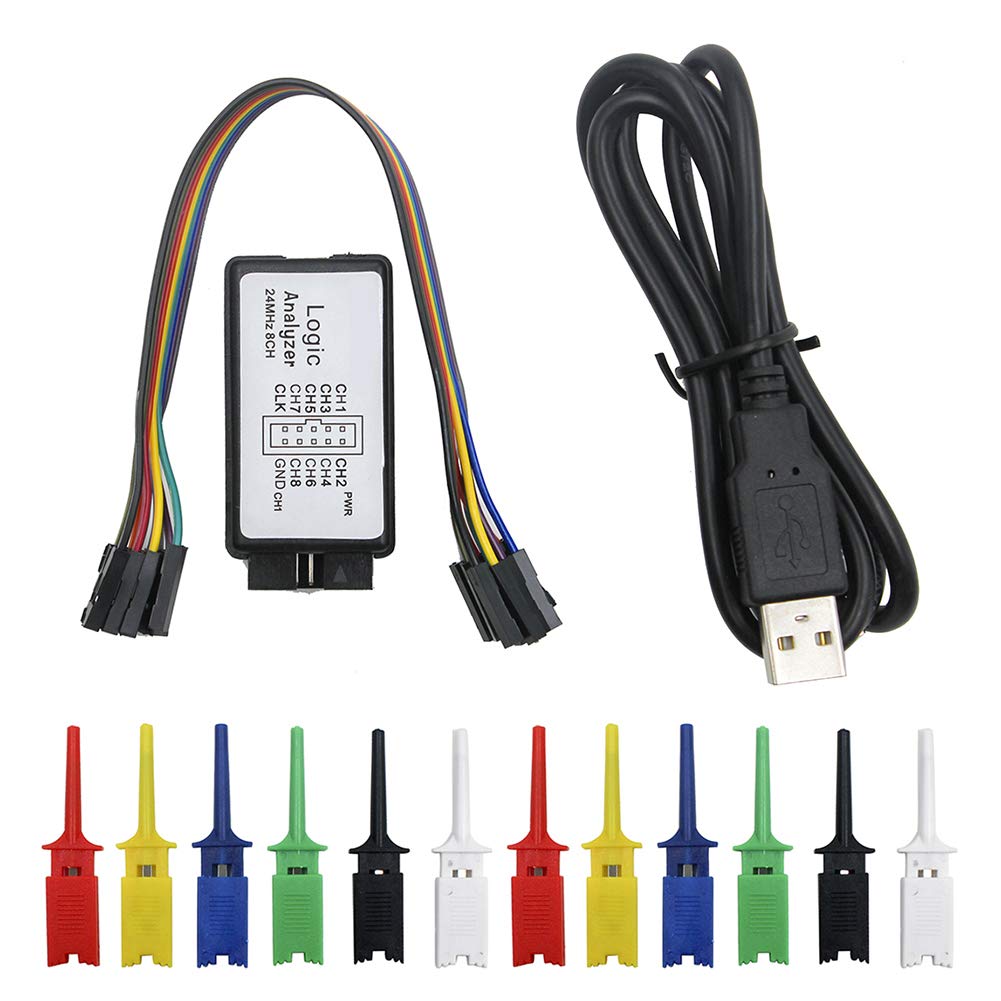

2. The Step Up: KeeYees 24MHz 8CH USB Logic Analyzer
The Vibe: The same budget hardware, but with slightly better accessories. Price: ~$16
You’ll see KeeYees, Comidox, and other brands. Inside, it’s the exact same FX2LP chip as the HiLetgo.
Why consider this one? Sometimes these “branded” clones include slightly better dupont wires or hook clips, or a slightly sturdier USB cable. Functionally, it is identical. Buy whichever is cheaper or has faster shipping on the day you need it.
Get it here: KeeYees 24MHz 8CH USB Logic Analyzer

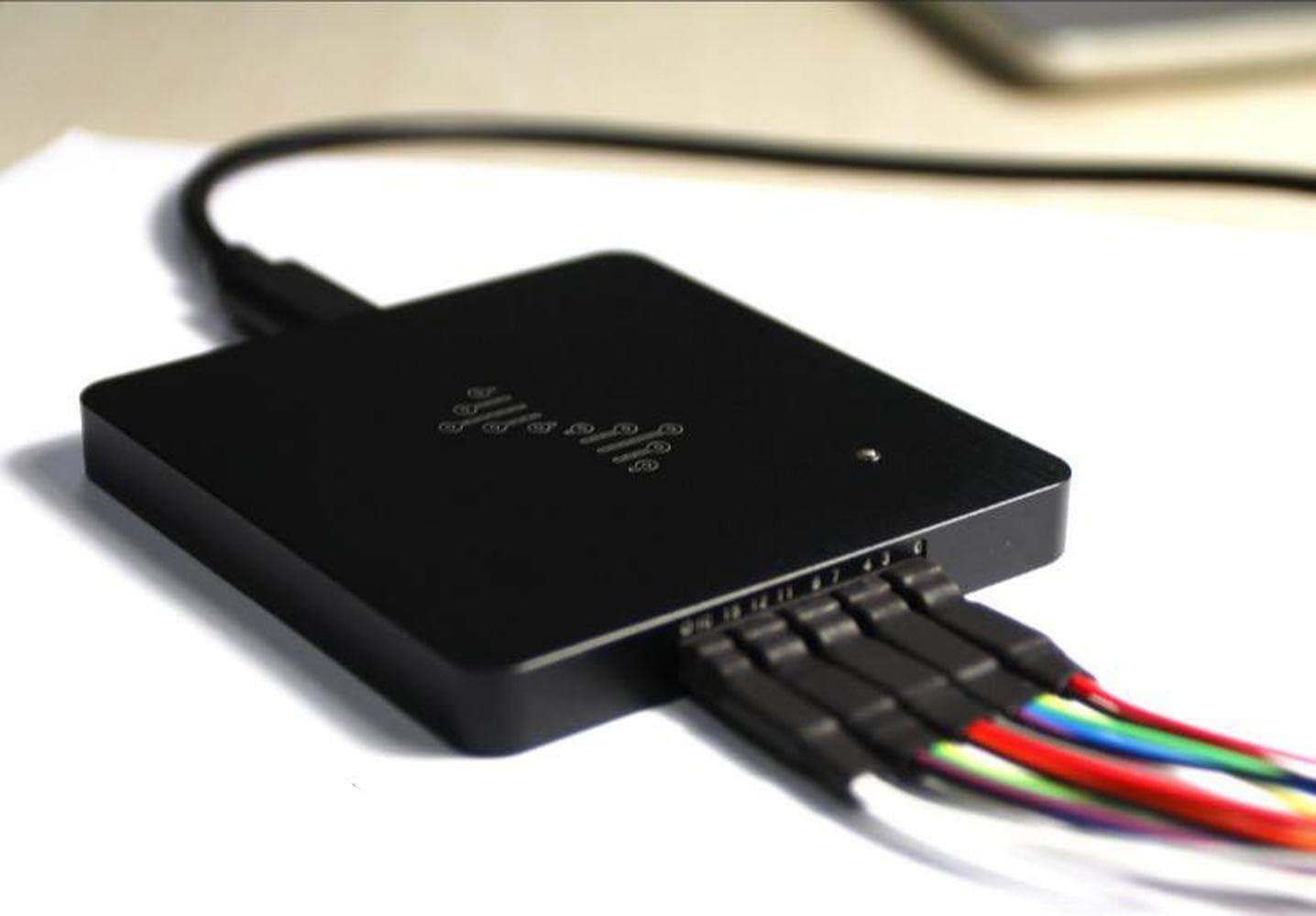

3. The Mid-Tier Powerhouse: DSLogic Plus (DreamSourceLab)
The Vibe: The serious hobbyist’s upgrade. Price: ~$150
Once you move beyond basic 16MHz Arduinos and start playing with ESP32s, Raspberry Pis, or high-speed SPI displays, the 24MHz limitation of the budget clones becomes a massive bottleneck. Enter the DSLogic Plus.
Why it matters for Pros (and ambitious beginners):
- 400MHz Max Sampling Rate: This is blazingly fast. It can easily capture and decode high-speed SPI lines driving TFT screens or fast memory chips.
- Built-in Hardware Buffer (256Mbits): Unlike the cheap clones that stream over USB (and drop packets if your computer gets busy), the DSLogic Plus captures the data into its own onboard memory first, then sends it to the PC. This guarantees you won’t drop samples.
- 16 Channels: Double the inputs. You can monitor an entire 8-bit parallel bus, plus control lines, all at once.
- Software: It uses DSView, which is a customized, optimized fork of Sigrok. It’s snappy and handles massive data captures beautifully.
Where it falls short: At ~$150, it’s a real investment. The shielded fly-wires are excellent, but they can be a bit bulky for very tight breadboard work.
Get it here: DSLogic Plus Logic Analyzer
The Verdict
For Beginners: Buy the HiLetgo 24MHz. Do not hesitate. For $15, it will save you hours of pulling your hair out trying to figure out why your I2C OLED screen isn’t working. It is a mandatory rite of passage in electronics.
For Serious Hobbyists: If you are debugging high-speed signals on 32-bit microcontrollers (ESP32, STM32, Teensy) or dealing with complex timing issues, the DSLogic Plus is worth every penny of its $150 price tag. It bridges the massive gap between a $15 toy and a $500+ professional tool.
